Overview

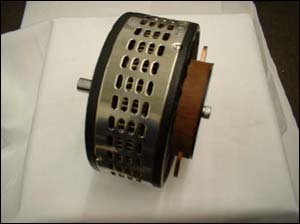

The LMC 130 is an Axial Gap D.C brushed motor suitable for light traction and robotics applications. Light traction applications, winches, disabled vehicles and many more. The LMC 130 is available in 95 strip armature.

Features

• High Efficiency (up to 88%)
• Light Weight (3 kilo’s)
• Simple Electronic control
• Long Brush Life
• Interchangeable Shaft
• Rugged Construction
• CE Marked
• IP20 Rating
• Available from 12 to 48V
• Voltage Constant of 150 rpm per volt

Dimensions (mm)

Requires Adobe Reader - download [ here ] link opens in a new window

Electrical Properties

• An Inductance in the order of 4µH.
• An Armature Resistance of 5m?.

Note! Due to the low inductance of the motor some controllers may require a series choke if a high starting torque is required. For further details and any other technical enquiries please contact L.M.C or your authorised distributor.

These are a few examples of the performance of this motor.

Each link opens an Excel Spreadsheet in a new window
