Introduction :
The typical PFC boost scheme is mainly suggested for off-line applications, with the galvanic insulation
located in the downstream converter side.
There are some industrial and consumer applications in which the galvanic insulation is provided by
the mains transformer( 50/60 Hz frequency).
The mains transformer guarantees a very safe insulation reducing the ac voltage at the secondary
winding to a profitable value for easy use.

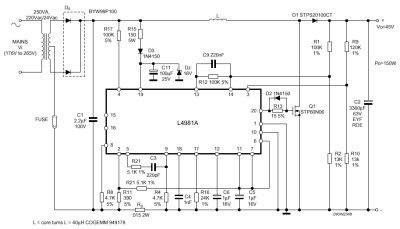

The purpose of this note is to quantify the effect of a PFC preregulator stage, connected to a typical
DC-DC converter in terms of efficiency, harmonic content and apparent power (VA) drawn from the mains.
An innovative application example, where a power audio amplifier instead of the DC-DC converter is
used, highlights the benefit and improvement of the power section due to the input supply voltage
stabilized by the PFC preregulator.
